Millathane® Millable Polyurethane Rubber

TSE is the world’s authority and largest manufacturer of Millathane® millable urethane rubber. We have been manufacturing Millathane since 1976 with thousands of formulas available.

Millathane millable polyurethane is the polymer of choice for the most demanding applications that require superior abrasion resistance and mechanical strength as well as oil and ozone resistance. Millathane (millable gums) are solid polymers that can be processed on internal mixers such as Banbury® mixers and rubber mills. For ease of processing on rubber mills, it is sold in bales and premilled sheets.

There are 10 different grades of Millathane polyurethane, each one possessing key properties and characteristics that make it distinct. We have also developed a Millathane UV curing system as an alternative to traditional peroxide and sulfur cures. The Formulary and Technical Data available for each will provide a better idea of which Millathane grade is right for your project.

Proper Selection of Millathane

To learn more about the various ways Millathane can be used, its formulary, available grades, and all relevant safety and technical information, please select from the following options.

PHYSICAL PROPERTIES
APPLICATIONS
FORMULARY & GRADES
SAFETY DATA
TECHNICAL DATA

Physical Properties of Millathane

Millable urethane rubbers possess a combination of physical properties not found in natural or synthetic rubber.

Compression Set

Compression

Excellent Resistance to Compression Set

Gas Permeability

Permeability

Excellent Gas Permeability Resistance

Low Temperature

Temperature

Low temperature flexibility, withstands temps up to 120°

Oils Resistance

Oils

Excellent Oil, Oxygen, and Ozone Resistance

Abrasion Resistance

Abrasion

Outstanding Abrasion Resistance

Millathane Advantages

Millable polyurethane rubbers are made from a polyester or polyether polyol, reacting them with diisocyanates such as MDI and TDI, typically also with a chain extender. A different stoichiometry is used for millable polyurethane than for castable (liquid) polyurethanes, making them solid rubber materials that can be processed like other types of rubber. While the properties of millable urethanes are similar to castable (liquid) polyurethanes, they require different processing equipment and molding techniques.

Generally, millable gums are under-indexed urethanes, meaning that there is a stoichiometric deficiency of isocyanate groups compared to hydroxyl groups in the overall reaction (NCO:OH ratio is less than 1.0). Liquid (castable) urethanes have a slight excess of isocyanate groups. Being under-indexed results in the need for millable urethanes to be vulcanized by peroxide or sulfur cure systems.

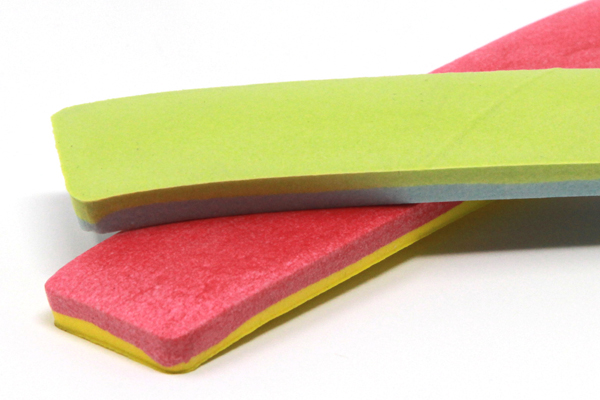

Millathane compounds can be made into dense, solid materials or sponge materials (foamed or blown). Dense compounds can have a hardness from approximately 25 to 99 Shore A (60 Shore D), tensile strengths over 5,000 psi (35 MPa) and DIN abrasion values as low as 30-40 mm³ loss. Sponge compounds can be produced with densities as low as 0.4 g/cc.
