Chain Tracks and Guides

At TSE, we specialize in custom conveyor components. Utilizing Ultra High Molecular Weight (UHMW) polyethylene from Duro-Glide® Polymer Sheets, we make a variety of custom high-performance uhmw replacement parts that keep industries moving.

Custom Plastic Tracks and Guides

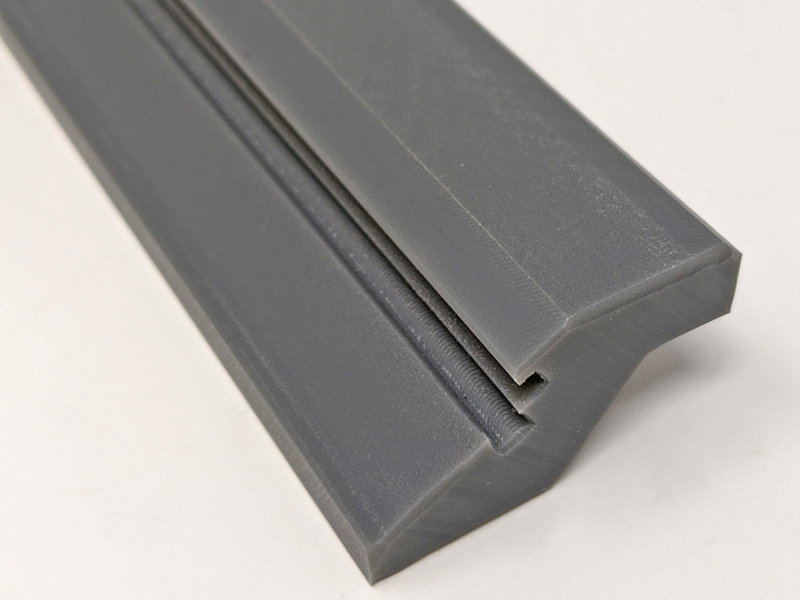

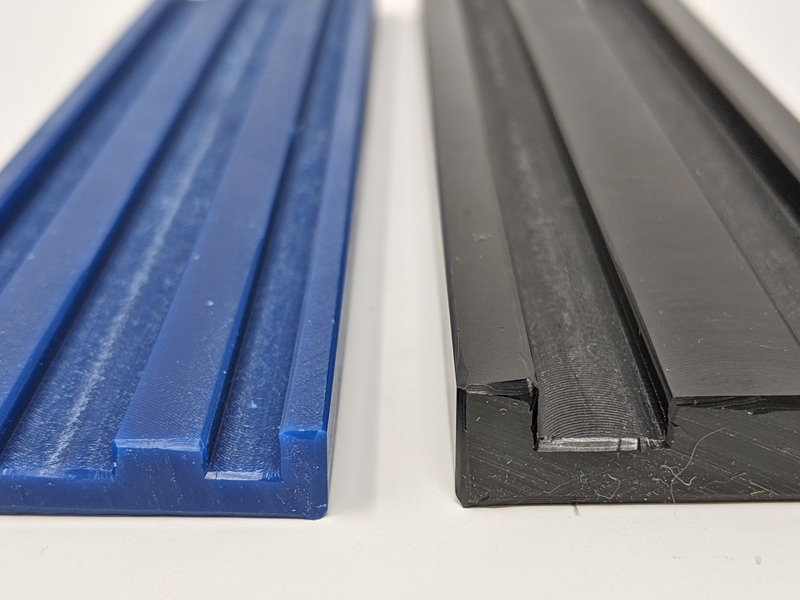

Chain Tracks

We offer made-to-order plastic chain tracks in several styles, as well as a variety of pre-made forms:

  • Corner Tracks Standard: TableTop® Chain (Tab)
  • Corner Tracks Bevel: TableTop® Chain
  • Corner Tracks Two-Piece: TableTop® Chain (Tab & Bevel Style)
  • Custom Tracks: Single Lane Tab, Single Lane Bevel, Multi-Lane Tab

Use our Chain Tracks Buyers Guide to help you select the best option for your needs.

Custom Plastic Tracks and Guides

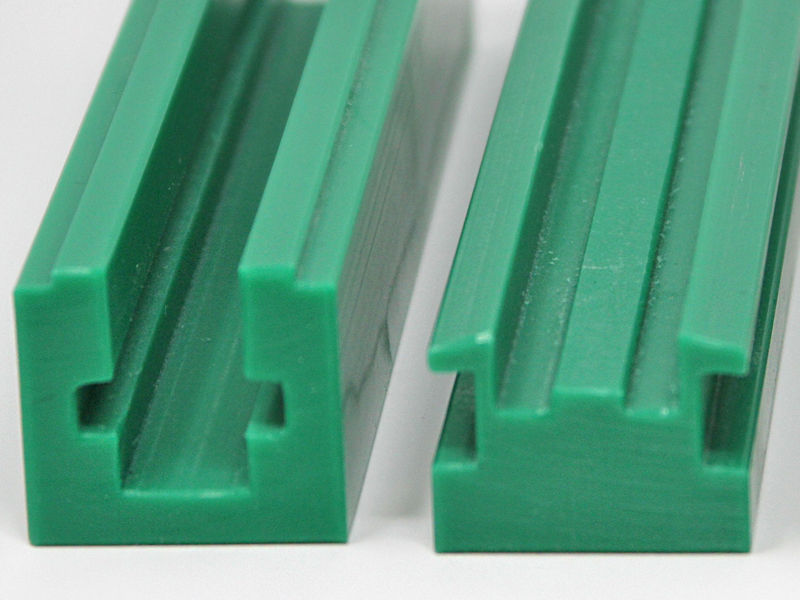

Chain Guides

We offer a full line of machined plastic Chain Guides designed to carry roller chains over a smooth surface. The material of choice is UHMW for its quiet operation with no need for lubrication and long life. Plastic chain guides come in a variety of configurations and materials.

We also offer a selection of standard and locking guide rails, as well as thermoplastic and universal guide rail brackets.

Tracks & Guides Formula Options

Our fabricated plastic tracks and guides come in a variety of formulations based on your specific requirements. The most common material used is UHMW, however other material options like HDPE, Acetal, and Nylon are available upon request.

Natural 1000
Formulation Code W
  • Virgin UHMW
  • Basic material selection for curves
  • FDA compliant
White 925
Formulation Code HT
  • Enhanced UHMW
  • High-temperature material
  • FDA compliant
Gray 703
Formulation Code GL
  • Enhanced UHMW
  • Lubricated with wear properties
  • FDA compliant
Black 931
Formulation Code SR
  • Enhanced UHMW
  • Static reduced material
  • FDA compliant
Black
Formulation Code BR
  • Reprocessed UHMW
  • Proprietary formula
  • R90
Black
Formulation Code MD
  • Moly filled Nylon
  • Best material for maximum speeds and loads
Brown 845
Formulation Code BL
  • Enhanced UHMW
  • Lubricated with wear properties
  • FDA compliant
Green 675
Formulation Code GF
  • Enhanced UHMW
  • Great abrasion resistance
  • Glass-filled for special applications

Looking for profiles, dimensions, and drawings of the components and accessories we offer? Check out our Engineered Polymers Division (EPD) Catalog to see a complete selection!
